Panel Mount Cable Gland
Reliable IP68 panel-mount cable glands in metal (MCGM) and plastic (PCGM) variants with thread sizes from M12 to M63 and a comprehensive cable OD coverage from 3 mm up to 44 mm. Engineered for sealed cable entry into control panels, junction boxes and outdoor enclosures.
Key Specifications
Quick overview of the Cable Gland series — thread sizes, IP rating and cable OD coverage.
Model Selection

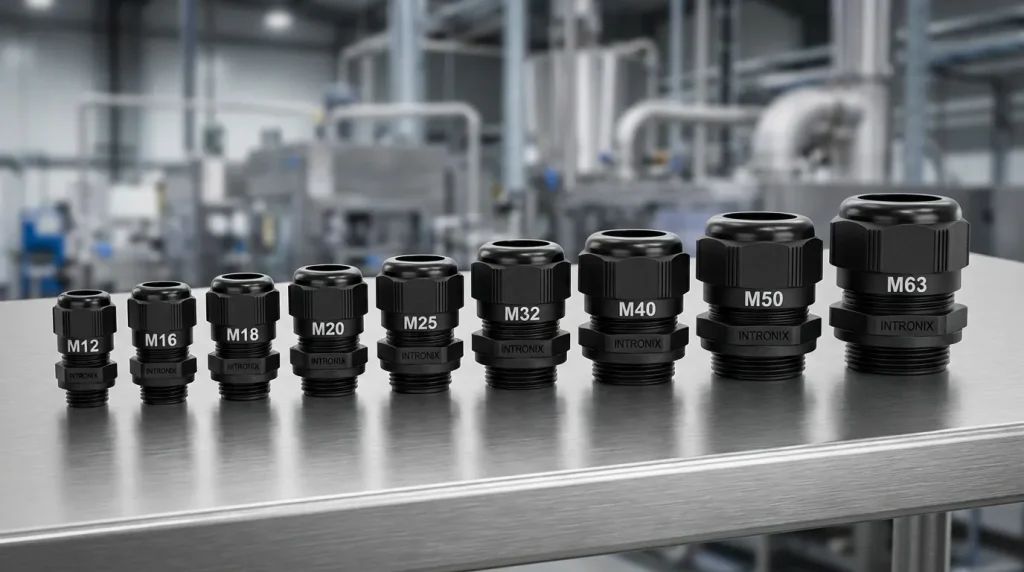

MCGM = Metal Cable Gland Mounted (thread M12 / M16 / M20 / M25 / M32 / M40 / M50 / M63). PCGM = Plastic Cable Gland Mounted (also includes M18).
MCGM Series — Metal Panel Mount
IP68 · M12 – M63| Part Number | Description | IP Rating | Cable OD |
|---|---|---|---|
| MCGM12-8001 | Panel Mount M12 x 1.5 | IP68 | Φ 3 – 6.5 mm |
| MCGM16-8001 | Panel Mount M16 x 1.5 | IP68 | Φ 4 – 8 mm |
| MCGM20-8001 | Panel Mount M20 x 1.5 | IP68 | Φ 6 – 12 mm |
| MCGM25-8001 | Panel Mount M25 x 1.5 | IP68 | Φ 13 – 18 mm |
| MCGM32-8001 | Panel Mount M32 x 1.5 | IP68 | Φ 15 – 22 mm |
| MCGM40-8001 | Panel Mount M40 x 1.5 | IP68 | Φ 22 – 30 mm |
| MCGM50-8001 | Panel Mount M50 x 1.5 | IP68 | Φ 32 – 38 mm |
| MCGM63-8001 | Panel Mount M63 x 1.5 | IP68 | Φ 37 – 44 mm |
PCGM Series — Plastic Panel Mount
IP68 · M12 – M63| Part Number | Description | IP Rating | Cable OD |
|---|---|---|---|
| PCGM12-8001 | Panel Mount M12 x 1.5 | IP68 | Φ 4 – 8 mm |
| PCGM16-8001 | Panel Mount M16 x 1.5 | IP68 | Φ 6 – 10 mm |
| PCGM18-8001 | Panel Mount M18 x 1.5 | IP68 | Φ 6 – 10 mm |
| PCGM20-8001 | Panel Mount M20 x 1.5 | IP68 | Φ 8.5 – 14 mm |
| PCGM25-8001 | Panel Mount M25 x 1.5 | IP68 | Φ 12.5 – 18 mm |
| PCGM32-8001 | Panel Mount M32 x 1.5 | IP68 | Φ 18 – 25 mm |
| PCGM40-8001 | Panel Mount M40 x 1.5 | IP68 | Φ 24 – 32 mm |
| PCGM50-8001 | Panel Mount M50 x 1.5 | IP68 | Φ 31 – 40 mm |
| PCGM63-8001 | Panel Mount M63 x 1.5 | IP68 | Φ 35 – 44 mm |
Product Highlights
Why the Cable Gland series is the right choice for sealed cable entry.
Sealing & Protection
IP68 rating for reliable dust-tight and continuous water-submersion protection.
IP68 Dust & Water Tight
Suitable for outdoor enclosures, wash-down areas and submerged installation.
Wide Cable OD Range
Covers cable diameters from 3 mm up to 44 mm in both metal and plastic versions.
Standard 1.5 mm Thread Pitch
M12 – M63 threads all use metric 1.5 mm pitch for global availability and easy replacement.
Two Material Options
Metal (MCGM) for rugged industrial use; Plastic (PCGM) for lighter weight and corrosion resistance.
Mechanical Specs
Common ratings across both MCGM and PCGM series.
| Thread Series | Metric ISO Thread (M) |
|---|---|
| Thread Size Range | M12 / M16 / M18(PC only) / M20 / M25 / M32 / M40 / M50 / M63 |
| Thread Pitch | 1.5 mm (all sizes) |
| Mount Style | Panel Mount, lock-nut fastening |
| IP Rating | IP68 (per IEC 60529) |
| Cable OD (Metal) | 3 – 44 mm (Φ 3-6.5 to Φ 37-44) |
| Cable OD (Plastic) | 4 – 44 mm (Φ 4-8 to Φ 35-44) |
| Material (MCGM) | Metal construction |
| Material (PCGM) | Plastic construction |
Application Areas
Typical deployment scenarios for sealed cable entry with cable glands.
Control Panels & Cabinets
Sealed cable entry into industrial control panels, distribution cabinets and machine enclosures requiring IP68 protection.
Outdoor Enclosures
Junction boxes, roadside cabinets and outdoor equipment requiring dust-tight and water-submersible sealing.
Industrial Equipment
Heavy machinery, automation systems and process equipment where the cable entry must withstand environmental stress.
