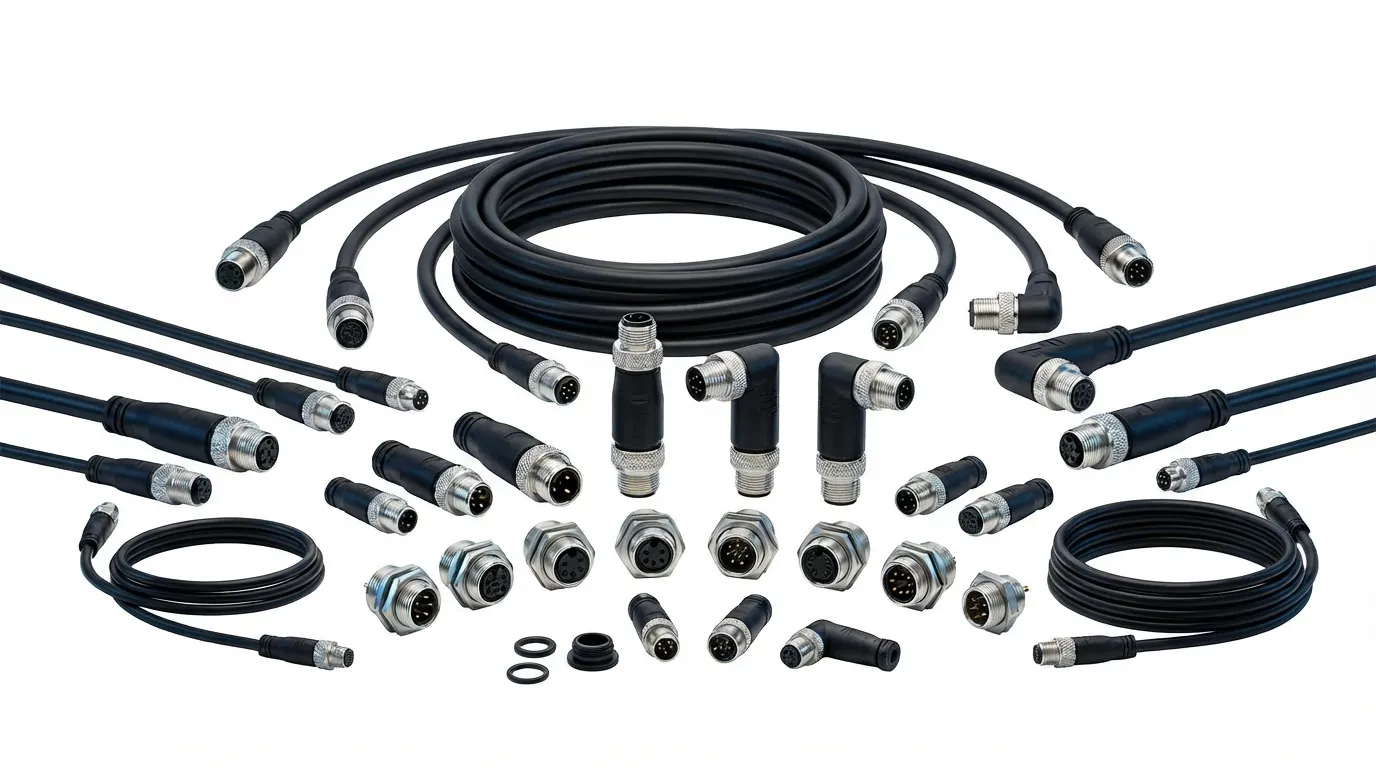

Intronix M12 connectors are engineered to meet rigorous IEC 61076-2 and IEC 60529 standards, with certifications under UL 1977 and UL 2238 to ensure safety and performance consistency. Designed specifically for demanding environments subject to high vibration and harsh exposure, our solutions provide the robust reliability essential for heavy-duty industries. From factory automation and mass transit to heavy equipment and automotive sectors, Intronix M12 connectors are the trusted choice for maintaining critical connectivity in the world’s most extreme operating conditions.
M12 A code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2~17pin
Current Ratingrated/Voltag : 2~4Pin :4A/250V, 5pin : 4A/60V , 8Pin : 2A/30V , 12~17Pin : 1.5A/30V
Standard: IEC 61076-2-101
M12 B code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 D code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 K code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 5pin
Current Ratingrated/Volta: 12A/630V
Standard: IEC 61076-2-101
M12 L code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P/4P + FE
Current Ratingrated/Voltage: 12A/DC 63V
Standard: IEC 61076-2-101
M12 S code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 3P/4P + PE
Current Ratingrated:12A
Voltage: AC 630V
Standard: IEC 61076-2-101
M12 T code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P +FE
Current Ratingrated: 12A
Voltage: DC 63V
Standard: IEC 61076-2-101
M12 X code ,Receptacle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 8 pin
Current Ratingrated: 0.5A
Voltage: 60V
Standard: IEC 61076-2-101
M12 A code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2~17pin
Current Ratingrated/Voltag : 2~4Pin :4A/250V, 5pin : 4A/60V , 8Pin : 2A/30V , 12~17Pin : 1.5A/30V
Standard: IEC 61076-2-101
M12 B code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 D code ,Over Molded,Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 K code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 5pin
Current Ratingrated/Volta: 12A/630V
Standard: IEC 61076-2-101
M12 L code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P/4P + FE
Current Ratingrated/Voltage: 12A/DC 63V
Standard: IEC 61076-2-101
M12 S code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 3P/4P + PE
Current Ratingrated:12A
Voltage: AC 630V
Standard: IEC 61076-2-10
M12 T code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P +FE
Current Ratingrated: 12A
Voltage: DC 63V
Standard: IEC 61076-2-101
M12 X code ,Over Molded, Stright
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 8 pin
Current Ratingrated: 0.5A
Voltage: 60V
Standard: IEC 61076-2-101
M12 A code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2~17pin
Current Ratingrated/Voltag : 2~4Pin :4A/250V, 5pin : 4A/60V , 8Pin : 2A/30V , 12~17Pin : 1.5A/30V
Standard: IEC 61076-2-101
M12 B code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 D code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 4~5 pin
Current Ratingrated/Volta: 4Pin :5A/250V , 5pin : 5A/60V
Standard: IEC 61076-2-101
M12 K code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 5pin
Current Ratingrated/Volta: 12A/630V
Standard: IEC 61076-2-101
M12 L code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P/4P + FE
Current Ratingrated/Voltage: 12A/DC 63V
Standard: IEC 61076-2-101
M12 S code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 3P/4P + PE
Current Ratingrated:12A
Voltage: AC 630V
Standard: IEC 61076-2-10
M12 T code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 2P/3P +FE
Current Ratingrated: 12A
Voltage: DC 63V
Standard: IEC 61076-2-101
M12 X code ,Over Molded, Right Angle
Gender : Male / Female
Fasten styly : Front / Rear
Pin no. 8 pin
Current Ratingrated: 0.5A
Voltage: 60V
Standard: IEC 61076-2-101
