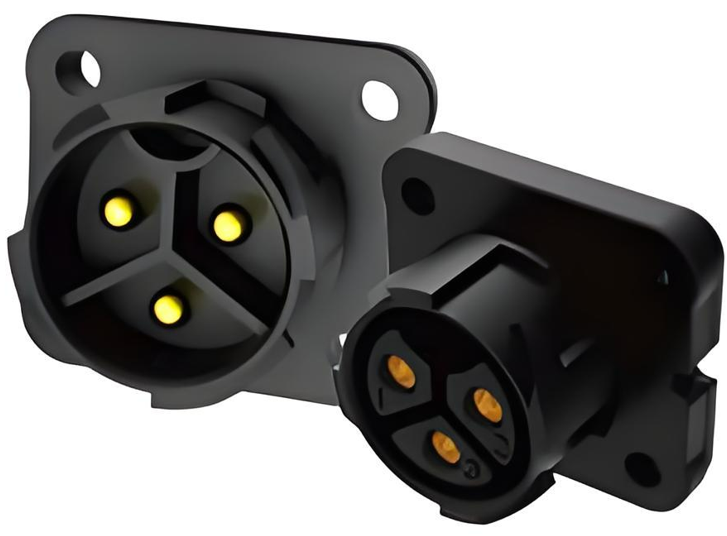

Heavy Duty Series Connector
Engineered for high-current industrial applications, the Heavy Duty Series delivers rugged performance from 10 A up to 40 A with IP67 / IP68 / IP69K protection, multiple mounting styles, and flexible angle options for power, signal and hybrid transmission.
Key Specifications
Quick overview of the Heavy Duty Series configuration options, ratings and mounting styles.
Product Highlights
Why the Heavy Duty Series works for demanding industrial applications.
2 Pin Power Supply
High-current single-phase power transmission up to 40 A.
3 Pin with Ground
2 + PE configuration suitable for industrial AC power circuits.
4 / 5 Pin Multi-purpose
Three-phase power distribution with optional PE or auxiliary signal.
6 Pin Hybrid Transmission
Combined power and signal channels for sensor and motor control lines.
Specification Table
Detailed ratings for each pin configuration.
| Pin | Rated Current | Rated Voltage | Typical Application |
|---|---|---|---|
| 2 Pin | 20A – 40A | 300V / 600V | High-current single-phase power supply |
| 3 Pin | 20A – 40A | 300V / 600V | 2 + PE industrial AC power |
| 4 Pin | 15A – 25A | 300V / 600V | Three-phase power distribution |
| 5 Pin | 10A – 20A | 300V / 600V | Three-phase + auxiliary signal |
| 6 Pin | 10A – 16A | 300V / 600V | Multi-channel industrial transmission |
Application Areas
Common deployment scenarios for the Heavy Duty Series.
High-Current Power
Industrial AC power distribution requiring 20 – 40 A at 300 / 600 V for machinery and motor lines.
Industrial Equipment
Field wiring for control cabinets, drives and heavy equipment with IP67 / IP69K outdoor protection.
Hybrid Transmission
Combined power and signal lines for sensors, actuators and motor feedback in one rugged connector.
Need Heavy Duty connector details or project support?
Contact our engineering team for datasheets, samples, custom pin configurations, or cable assembly options.
